Sarcoidosis

Author(s): Andrew Woolley[a], Michaela Lynn[b] and Neena Singh[b]

a Consultant Respiratory Physician, St Mary's Hospital, Isle of Wight , UK

b Foundation Year 1 doctors; St Mary's Hospital, Isle of Wight , UK

Correspondance: Michaela Lynn [email protected]

Introduction

Sarcoidosis is a multisystem granulomatous disease of unknown cause. It occurs worldwide but there are higher incidences in certain racial groups, being three to four times more common in African-Americans [1]. It can also aggregate in families. Most patients do not need treatment and the disease often regresses spontaneously, but a minority have potentially life-threatening progressive organ dysfunction; these patients need active management including oral corticosteroids. The poorest prognosis, in terms of chronicity and fatality, is for African Americans [2]. This case illustrates that acute sarcoidosis can be a difficult diagnosis to make.

Clinical assessment

A 59 year old man of white Australian origin, who had been living in the UK for the last 35 years, presented to the medical admission unit of our hospital with a cough, rash and pyrexia. The cough had been present for 3 months, increasing over the preceding 2 weeks, and was productive of clear sputum.  He gave a 10 day history of an erythematous rash which involved all four limbs and the upper trunk, sparing the palms and soles. The patient also complained of widespread arthralgia, with variable joint swelling, tenderness and stiffness. There was no history of night sweats, weight loss or haemoptysis. His past medical history included fusion of the left ankle joint following an injury at the age of fifteen; he was otherwise fit and well. He was not on any regular medications and had no known drug allergies. He drank alcohol occasionally and had never smoked. He worked as an engineer. His last overseas travel was to the Australian outback in Queensland four years previously. He had no pets or significant animal exposure and no recent insect bites.



On examination, his temperature was 37.3 0C and other observations were normal. There were no added heart sounds and vesicular breath sounds were heard throughout. There was bilateral pedal pitting oedema to below knee level. There were no peripheral stigmata of vasculitis or palpable lymphadenopathy present. The abdomen was soft and non-tender with no palpable organs or masses. The neurological examination was unremarkable. There was bilateral conjunctival injection. Dermatological examination revealed multiple 1-2 mm erythematous macules on the arms, legs and upper trunk. There was a marked erythematous area on the right ankle and a firm tender swelling with surrounding erythema just distal to the left elbow. The latter had developed spontaneously on the day of admission.



During the following 30 days of the patient being in hospital, he spiked temperatures daily, ranging from 37.3◦C to 38.6◦C. He also complained of widespread arthralgia, reporting variable joint swelling. Towards the end of his admission, the patient developed multiple, red, round, warm nodules on the postero-medial aspects of the lower limbs, reminiscent of erythema nodosum.

Investigations

Initial Investigations

Routine bloods tests revealed a mildly raised neutrophil count and an elevated CRP. Renal function was not impaired and all electrolytes were within the normal range. Bone profile was stable – see Table 1.

Table 1. Blood results on admission



Description

Value

Range

Haemoglobin

155g/l

135-185

MCV

86 fl

78-100

Platelets

289 x109/l

140-400

White cell count

10.9x 109/l

4.0-11.0

Neutrophils

8.6 x109/l

2.0-7.5

lymphocytes

1.1 x109/l

1.0-3.5

Urea

3.7 mmol/l

2.5-7.8

Sodium

132 mmol/l

133-146

Potassium

4.3 mmol/l

3.5-5.3

Chloride

93 mmol/l

95-108

Creatinine

82 μmol/l

60-110

Estimated GFR

89 mL/min/1.73m2

>90

CRP

174.9 mg/l

0.0-5.0

Calcium

2.26 mmol/l

2.20-2.60

Phosphate

1.14 mmol/l

0.80-1.50

Adjusted Calcium

2.39 mmol/l

2.20-2.60

Tot. Bilirubin

12 μmol/l

<21

Alkaline Phosphatase

95 U/L

30-130

Total Protein

78 g/l

60-80

Albumin

37 g/l

35-50

Globulin

41 g/l

20-40

Alanine Aminotransferase

45 U/L

<40



ECG showed left axis deviation. Urinalysis was negative for nitrites, leucocytes and blood. Repeated blood and sputum cultures showed no growth. Auramine stain was negative.

Specific Investigations

In view of the history of travel in the Australian outback, relevant infectious diseases were investigated Malarial screen, ASO titre, HIV and serology for Brucella, Chikungunya virus, Cytomegalovirus (CMV), Dengue virus, Epstein–Barr virus (EBV), Hepatitis B surface antigen, Hepatitis C antibody, Lyme, Mycoplasma, Orientiatsutsugamushi, Q fever, Ross River Fever, Spotted fever and Syphilis but all were negative. Other immunological and biochemical investigations were unremarkable – see Tables 2 and 3.

Table 2. Immunology

Description

Value

Range

ANA

Ratio 2.4

< 1.0

ANCA

Negative



Rheumatoid factor

57 IU/ml

0-25



Table 3. Chemical Pathology

Description

Value

Range

ESR

70 mm/hr



Protein electrophoresis

Inflammatory response



Serum IgA

2.73 g/l

0.80-4.00

Serum IgG

13.77 g/l

5.30-16.50

Serum IgM

0.80 g/l

0.50-2.00

INR

1.0

0.8-1.2

Beta-2 microglobulin

3.3 mg/l

1.2-2.4

LDH

499 IU/l

225-425

CA 19-9

32 KU/L

0-35

CEA

0.9 μg/l

0.0-2.5

AFP

1.2 KU/L

0.0-10.0



Imaging

Figure 1. Anterior-posterior chest radiograph.



The chest radiograph did not show any evidence of infection and was thought to be normal – see Figure 1.

Figure 2. CT chest/abdomen/pelvis with contrast



CT of the chest/abdomen/pelvis showed widespread lymph node enlargement throughout the mediastinum, suggesting possible sarcoidosis – see Figure 2.

Histology

Endobronchial ultrasound (EBUS) guided needle aspiration of the sub-carinal lymph node showed large numbers of lymphocytes and scattered histocytes with no malignant cells or well-formed granulomas.



Biopsy of the skin lesions was considered but they were beginning to resolve before this could be done.

4. Differential diagnosis

Initial working diagnosis was cellulitis of the right leg. Septic arthritis of the right ankle was excluded by the Orthopaedic team.



Differential diagnoses could be categorised into four broad areas:

  1. Infections including demographic specific infections; bacterial infections including TB, Rheumatic fever, mycoplasma and typhoid; viral infections including HIV, EBV, CMV and hepatitis
  2. Immune-mediated causes including sarcoidosis, vasculitis, SLE, reactive arthritis, psoriatic arthritis and amyloidosis
  3. Malignancy including lymphoma, leukemia and metastatic cancer
  4. Other causes of unexplained pyrexia such as abscess, haematoma, drug fever, pulmonary emboli, hyperthyroidism and sub-acute thyroiditis



Following the CT result, the patient was referred to the Respiratory team. A diagnosis of probable sarcoidosis was made. This was investigated by an EBUS guided needle aspiration which was performed in a regional tertiary hospital.

Treatment and Progress

Initial treatment was with flucloxacillin for cellulitis. However, the progression of the rash from the lower legs to the thighs, the bilateral swelling of the elbows and the development of tender red nodules, raised a concern that he had had a reaction to the antibiotic. This in conjunction with the ongoing pyrexia and elevated CRP (see graphs 1 and 2) prompted a switch to second line antibiotics (doxycycline), although this was not associated with any change in these outcomes.

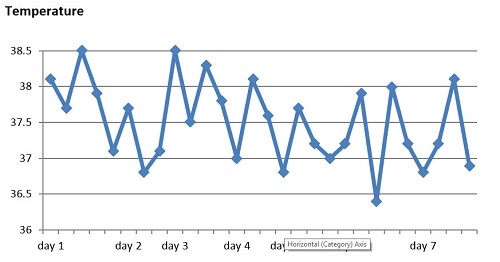

Graph 1. Fluctuating temperatures during admission

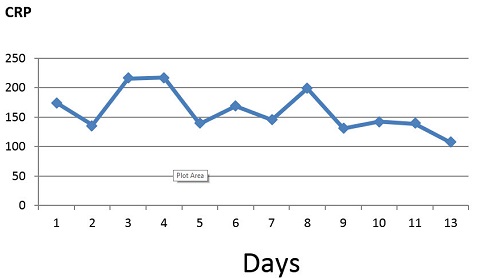

Graph 2. Fluctuating CRP during admission

Following a review by the Respiratory Team, antibiotic treatment was stopped and this did not cause any deterioration in the patient’s clinical state. Treatment with steroids was withheld until a histological diagnosis could be made. The EBUS lymph node aspiration cytology was supportive of the diagnosis of sarcoidosis. He was referred to an Ophthalmologist, as per American Thoracic Society guidelines [3], who diagnosed ocular hypertension but did not find any evidence of uveitis or visual impairment.

The patient was booked for an urgent follow-up out-patient appointment to discuss findings, prognosis and treatment options. At follow-up 2 months after discharge, he was asymptomatic and on no treatment.

Comment

Pyrexia of unknown origin (PUO) was first defined in 1961 as a temperature greater than 38.3°C on several occasions, accompanied by more than three weeks of illness and a failure to reach a diagnosis after one week of inpatient investigation [4]. In adults, infections, cancer and auto-immune disorders account for most PUOs. However, drug fever, granulomatous diseases-including sarcoidosis, vasculitides, pulmonary emboli, hyperthyroidism and subacute thyroiditis are other important causes.



Erythema nodosum (EN) is characterized by purple or red, tender nodules, which can occur anywhere but are usually on the anterior aspect of the lower leg. Accompanying arthralgia occurs in more than half of patients. Streptococcal infection is the most common underlying cause. Granulomatous diseases, including sarcoidosis and tuberculosis must be considered. EN may correlate with a flare-up of Crohn's disease or ulcerative colitis. It can precede the diagnosis of Hodgkin's lymphoma and non-Hodgkin's lymphoma. It can be drug induced. In many cases no cause is found.



Bilateral hilar lymph node enlargement can be a feature of infection (particularly fungal or mycobacterial organisms) or malignancy (e.g. lymphoma). However bilateral hilar lymphadenopathy is the most common radiological finding in sarcoidosis [5]; this should therefore remain high on the differential diagnosis list.



With hindsight, the pattern of clinical features including pyrexia, erythema nodosum and bilateral hilar lymphadenopathy were highly suggestive of a clinical diagnosis of sarcoidosis. A good quality postero-anterior radiograph on admission to hospital may have brought the diagnosis to light much earlier.

References

  1. Thomas K.W. and Hunninghake G.W. 2003 Sarcoidosis. JAMA; 289(24):3300-3303
  2. Annuzzi M.C., Rybicki B.A. and Teirstein A.S. 2007 Sarcoidosis. New England Journal of Medicine; 357(21):2153-65
  3. American Thoracic Society. Statement on Sarcoidosis. 1999. American Journal of Respiratory and Critical Care Medicine;160:736-55
  4. Petersdorf R.G. and Beeson P.B. 1961 Fever of unexplained origin: report on 100 cases. Medicine (Baltimore) Feb; 40:1-30.
  5. Hyun J. P., Jung I.J.,Myung H. C.,Sun W. S., Hyo L. M., Jun H. B., Dae H. H., Ki J. K., and Kyo-Young L. 2009 Typical and Atypical Manifestations of Intrathoracic Sarcoidosis. Korean Journal of  Radiology  Nov-Dec; 10(6): 623–631.
