Quinolone resistance in Salmonella enterica serovar Typhi: Mechanisms, factors driving the spread of resistance, current epidemiological trends and clinical significance

Author(s): Gasim Omer Elkhalifa Abd-Elfarag

Tropical & Infectious Diseases Student, Liverpool School of Tropical Medicine, UK

Correspondence to:[email protected]

Introduction

The human restricted bacteria,Salmonella enterica serovar Typhi is the major cause of typhoid fever (or enteric fever), a characteristic severe systemic illness [1]. In 2010, typhoid fever accounted for an estimated global burden of 27 million new cases and 200,000 deaths [2].

     For over two decades, S. enterica serovar Typhi and other serovars have developed resistance to the first line antimicrobials (ampicillin, chloramphenicol, and co-trimoxazole). As a result of this multidrug resistance (MDR), quinolones became key antibiotics for treatment of Salmonella Typhi disease [3]. Quinolones are a group of antimicrobials with a 4-quinolone nucleus [4]. Quinolones target the bacterial enzymes DNA gyrase and topoisomerase IV, which are essential for DNA replication and transcription [4]. They are classified by differences in their in-vitro antimicrobial activity into:

  • First-generation (nalidixic acid and cinoxacin),
  • Second-generation (norfloxacin, ciprofloxacin, lomefloxacin, ofloxacin, and levofloxacin),
  • Third-generation (sparfloxacin, gatifloxacin, and grepafloxacin), and
  • Fourth-generation (trovafloxacin, moxifloxacin, and gemifloxacin)[5].

The second, third, and fourth-generation quinolones are also called fluoroquinolones; generated by addition of a fluorine atom and a cyclic diamine piperazine at C6 and C7 positions of the 4-quinolone nucleus respectively [4]. The second-generation quinolones have an expanded gram-negative and atypical coverage but limited gram-positive coverage, while the third-generation additionally have improved gram-positive coverage, and the fourth-generation have an additional anaerobic coverage [6].

Nalidixic acid was commonly used especially in developing countries but as a result of resistance and toxicity, ciprofloxacin became the most commonly used against Salmonella Typhi. However, in vitro resistance to nalidixic acid in Salmonella Typhi also indicates resistance to ciprofloxacin [7].

Due to lack of availability and cost, other higher generation quinolones are not used in resource-limited countries. Ofloxacin, levofloxacin, moxifloxacin, and gatifloxacin are also used in the treatment of MD Rtuberculosis; this could also be a reason for lack of their use in countries where tuberculosis is prevalent.

This review focuses on the mechanisms underlying susceptibility and resistances of quinolones in Salmonella Typhi; explaining the factors driving the spread of resistance, current epidemiological trends and clinical significance of the resistance.

Methodology

Articles for this review were identified by searches of PubMed, Web of Science, Science Direct, Scopus, Global Health Database, and the Liverpool School of Tropical Medicine electronic library ‘DISCOVER’ using the search terms “salmonella Typhi”, “quinolones”, and “resistance”. Only articles published in Englishbetween 2002 and 2015 were used.

Mutations of gyrase and topoisomerase genes

The primary target of quinolones in gram-negative bacteria is the gyrA subunit of DNA gyrase, and point mutations usually occur within the quinolone resistance determining region (QRDR) of the DNA gyrase gene [4].  In SalmonellaTyphi, single mutation of gyrAgene leads to resistance to nalidixic acid and reduced susceptibility to ciprofloxacin [minimum inhibitory concentration (MICs) of 0.125–0.25μg/mL], whereas complete resistance to ciprofloxacin (MIC > 4μg/mL) is caused by double mutation in the QRDR region [3].A non-classical quinolone resistance in Salmonella Typhi exhibiting a gyrB gene mutation also exists [8]. In Gram-negative bacteria, point mutations in topoisomerase IV subunit genes parC and parE also occur, but are less common than gyrA mutations [4].

Efflux-based drug resistance

Bacteria have the ability to increase the expression of nonspecific energy-dependent efflux pumps that avoid the accumulation of effective intracellular concentrations of quinolones by actively pumping the drug across the cell membrane, thus leading to an efflux-based drug resistance [4]. Efflux-based drug resistance can also be caused by mutation in a drug transporter [9]. Salmonella Typhi expresses MDR transporters of the major facilitator super-family (MFS), which include STY4874 proton-dependent efflux pump that transports several quinolones [9]. STY4874 pump is considered significant because it pumps quinolones out of the cells and is the most likely MDR transporter, as it confers resistance to quinolones, aminoglycosides and chloramphenicol. Efflux-mediated quinolone resistance becomes of clinical significance only when combined with other resistance mechanisms, such as mutations in target enzymes because they only produce low-level resistance [4].

Reduced outer membrane permeability

Gram-negative bacteria develop antimicrobial resistance (including quinolones) by reducing the levels of outer membrane porins that form the routes responsible for passive diffusion. This results in reduced outer membrane permeability to antimicrobials [4]. It has been shown that exposure of non-dividing cells to ciprofloxacin results in ‘adaptive mutation’ of the cells, thus resulting in decreased permeability of the bacterial outer membrane. This is considered to be a cause of gradual increase in mean MIC for ciprofloxacin in Salmonella Typhi [10].

Plasmid-mediated resistance

The plasmid-encoded gnr gene is a naturally occurring gene which can mediate reduced susceptibility to quinolones, but it can cause a higher level of resistance by potentiating the effect of other resistance mutations [4]. Plasmid gene qnrB and qnrS in Salmonella Typhi were shown to be responsible for plasmid-mediated quinolone resistance [11].

Biofilm

Biofilm does not affect drug resistance in Salmonella Typhi but results in delayed clearance from typhoid patients [12].

Factors contributing to the spread of resistance and epidemiological trends

The current global Salmonella Typhi resistance to quinolones emerged as a result of extensive quinolone use/misuse, including selective pressure from empirical use [13]. The use of substandard fluoroquinolones and their usage in animals also significantly contributed to the resistance [14, 15]]. Three trends of antimicrobial resistance to Salmonella Typhi occurred as a result of ciprofloxacin use: (i) ongoing resistance to the first-line antimicrobials and low prevalence of quinolone-resistant Salmonella Typhi, (ii) equal prevalence of nalidixic acid-resistant Salmonella Typhi, and (iii) a slow increase of nalidixic acid-resistant Salmonella Typhi (NARST) and reduced prevalence of multidrug-resistant Salmonella Typhi (MDRST)[13]- see Figure 1.

     Most of the resistant strains of Salmonella Typhi (especially the haplotype H58, a prevalent MDR clone that has spread over Asia and Africa) emerged from Southeast Asia and then spread to other regions of the world [13]. Travellers also played a significant role in spreading the resistant Salmonella Typhi, especially to the developed world [16, 17]. The quinolone-resistant Salmonella Typhi is not only prevalent in hospital settings but also in the community [18].

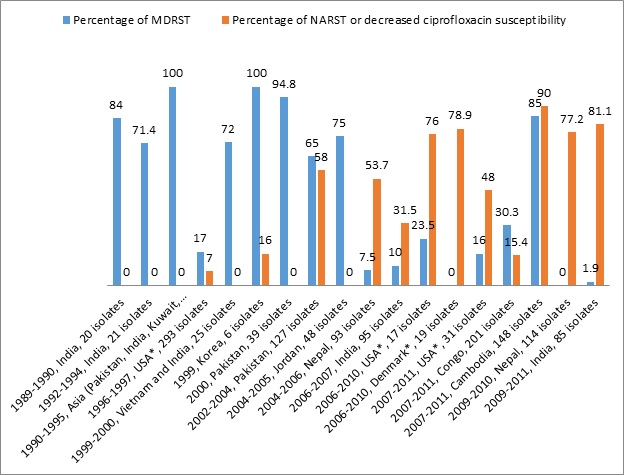

Figure 1. Emergence and global resistance trends of Salmonella Typhi to nalidixic acid and ciprofloxacin. Data from Tatavarthy et al. 2014. – see reference 13.

*Indicates foreign travel related.

Clinical significance and conclusion

Enteric fever caused by NARST isolates which also have reduced susceptibility to ciprofloxacin are associated with poor clinical outcomes including treatment failure [18]. These isolates are usually classified as being ciprofloxacin susceptible when using the previous susceptibility breakpoints for ciprofloxacin [18]. However in order to avoid such misclassifications, the clinical and laboratory standard institute (CLSI) approved a reduced susceptibility breakpoint for Salmonella Typhi (≤0.06 μg/mL) and also suggested that the nalidixic acid screen should be used to test forreduced quinolone susceptibility in Salmonella Typhi, although it may miss other quinolone resistant strains[19]. Therefore ciprofloxacin MIC is a significant determinant of clinical response to treatment and it should be considered in all Salmonella Typhi isolates [20].

     Convalescent faecal carriage as a result of quinolone-resistant Salmonella Typhi plays a critical role in spreading the disease in the community [21].This is difficult to control especially in countries where there is limited access to adequate sanitation and clean water facilities.

     Although not available in many resource-limited settings, a community-based drug susceptibility data is critically needed to facilitate rational use of antimicrobials in general and improve antimicrobial choices made for enteric fever.

     Third-generation cephalosporins and azithromycin remain the treatment of choice for typhoid fever in areas with quinolone resistance and for travellers returning from these areas [17]. There is some evidence supporting the effectiveness of newer fluoroquinolones (gatifloxacin) in areas where resistance to nalidixic acid and ciprofloxacin exist [22]. However, cheaper oral quinolones such as ciprofloxacin can still be used where there is evidence of absence of Salmonella Typhi resistance. Prevention through access to clean and safe water, adequate sanitation, and education should be encouraged in all settings. A recent Cochrane review showed that both the licensed Ty21a and Vi polysaccharide vaccines and the unlicensed Vi-rEPA vaccine are efficacious [23].  However, their role-out on a large scale, especially in resource-limited settings where typhoid fever is endemic, would be a significant challenge, although travellers to those areas may benefit.

References

  1. Mabey D, Gill G, Parry E, Weber MW, Whitt CJM. Typhoid, paratyphoid and non-typhoid Salmonella infections in Feasey, N. and Gordon, M., eds., Principles of Medicine in Africa,4th Edition ed., Cambridge: Cambridge University Press, 2012. 308-315.
  2. Karkey A, Thompson CN, Thieu NTV, Dongol S, Phuong TLT, Vinh PV, Arjyal A, Martin L B, Rondini S, Jeremy J, Farrar2, Dolecek C, Basnyat B, Baker S. Differential Epidemiology of Salmonella Typhi and Paratyphi A in Kathmandu, Nepal: A Matched Case Control Investigation in a Highly Endemic Enteric Fever Setting, PLoS Negl Trop Dis,2013. 7(8), 1-9.
  3. Hassing R.-J, Menezesd GA, Pelt WV, Petit PL, Genderenb PJV, Goessensa WHF Analysis of mechanisms involved in reduced susceptibility to ciprofloxacin in Salmonella enterica serotypes Typhi and Paratyphi A isolates from travellers to Southeast Asia', International Journal of Antimicrobial Agents,2011.37, 240–243.
  4. Guan X, Xue X, Yuxia Liu, Wang J, Wang Y, Wang J, Wang K, Jiang H, Zhang L, Yang B, Wang N, Pan L..Plasmid-mediated quinolone resistance – current knowledge and future perspectives, Journal of International Medical Research,2013. 41(1), 20–30.
  5. Andriole VT. The Quinolones: Past, Present, and Future, Clinical Infectious Diseases,2005.41, S113–9.
  6. Oliphant CM, PharmD, U. o. W. S. o. P, Casper, Wyoming, Green GM, Permanente K,Santa Rosa Medical Center California. Quinolones: A Comprehensive Review, American Family Physician,2002. 65(3), 455-464.
  7. Leopold SJ, Leth F v, Tarekegn H, Schultsz, C. Antimicrobial drug resistance among clinically relevant bacterial isolates in sub-Saharan Africa: a systematic review, J Antimicrob Chemother,2014. 69, 2337–2353.
  8. Gupta R, Gaind R, Wain J, Debb M, Singh LC. Basir SF Characterization of non-classical quinolone resistance in Salmonella enterica serovar Typhi: Report of a novel mutation in gyrB gene and diagnostic challenges, Biomolecular Detection and Quantification,2014. 2, 30–34.
  9. Shaheen A, Ismat F, Iqbal M, HaqueA, Zorzi RD, Mirza O, Walz T. Rahman M. Characterization of putative multidrug resistance transporters of the major facilitator-superfamily expressed in Salmonella Typhi, Journal of Infection and Chemotherapy, 2015.1-6.
  10. Nath G, Maurya P. Drug resistance patterns in Salmonella enterica subspecies enterica serotype Typhi strains isolated over a period of two decades, with special reference to ciprofloxacin and ceftriaxone, International Journal of Antimicrobial Agents,2010. 35, 482–485.
  11. Geetha V, Yugendran T, Srinivasan R. Harish B. Plasmid-mediated quinolone resistance in typhoidal Salmonellae: A preliminary report from South India, Indian Journal of Medical Microbiology,2014.32(1), 31-34.
  12. Raza A., Sarwar, Y., Ali, A., Jamil, A., Haque, A. and Haque, A. Effect of biofilm formation on the excretion of Salmonella enterica serovar Typhi in feces, International Journal of Infectious Diseases, 15(2011), e747-e752.
  13. Tatavarthy A, Luna VA. Amuso PT.How multidrug resistance in typhoid fever affects treatment options, Ann. N.Y. Acad. Sci.,2014. 1323, 76–90.
  14. Hasan R, Zafar A, Abbas Z, Mahraj V, Malik F. Zaidi A. 'Antibiotic resistance among Salmonella enterica serovars Typhi and Paratyphi A in Pakistan (2001-2006), J Infect Developing Countries, 2008.2(4), 289-294.
  15. Raveendran R, Datta S. Wattal C. Drug Resistance in Salmoella enterica Serotype Typhi and Paratyphi A, JIMSA,2010. 23(1), 21-24.
  16. Tatavarthy A, SandersonR, Peak K, Scilabro G, Davenhill P, Cannons A. and P. Amusoa B. Molecular Typing and Resistance Analysis of Travel-Associated Salmonella enterica Serotype Typhi', Journal of Clinical Microbiology,2012. 50(8), 2631–2638.
  17. Farmakiotis D, Varughese J, Sue P, Andrews P, Brimmage M, Dobroszycki J.Coyle CM. Typhoid Fever in an Inner City Hospital: A 5-Year Retrospective Review, Journal of Travel Medicine,2013. 20(1), 17–21.
    1. Kadhiravan T, Wig N, Kapil A, Kabra S, Renuka K. Misra1 A. Clinical outcomes in typhoid fever: adverse impact of infection with nalidixic acid-resistant Salmonella typhi, BMC Infectious Diseases,2005.5 (37), 1-10.
    2. Humphries RM, Fang FC, Aarestrup FM. Hindler1JA. In Vitro Susceptibility Testing of Fluoroquinolone Activity Against Salmonella: Recent Changes to CLSI Standards, Clinical Infectious Diseases,2012. 55(8), 1107–13.
    3. Girish R, Kumar A, Khan S, Dinesh KR. Karim SU. Revised Ciprofloxacin Breakpoints for Salmonella: Is it Time to Write an Obituary?, Journal of Clinical and Diagnostic Research,2013. 7(11), 2467-2469.
    4. Parry CM. The treatment of multidrug-resistant and nalidixic acid-resistant typhoid fever in Viet Nam, Transactions of the Royal Society of Tropical Medicine and Hygiene,2004. 98, 413—422.
    5. Effa EE, Lassi ZS, Critchley JA, Garner P, Sinclair D, Olliaro PL, Bhutta ZA..2011.Fluoroquinolones for treating typhoid and paratyphoid fever (enteric fever) (Review), The Cochrane Library, 2011(10), 1-141.
    6. Anwar EE., Goldberg E, Fraser A, Acosta CJ, Paul M, Leibovici L. Vaccines for preventing typhoid fever (Review), The Cochrane Library 2014.(1), 1-93.
